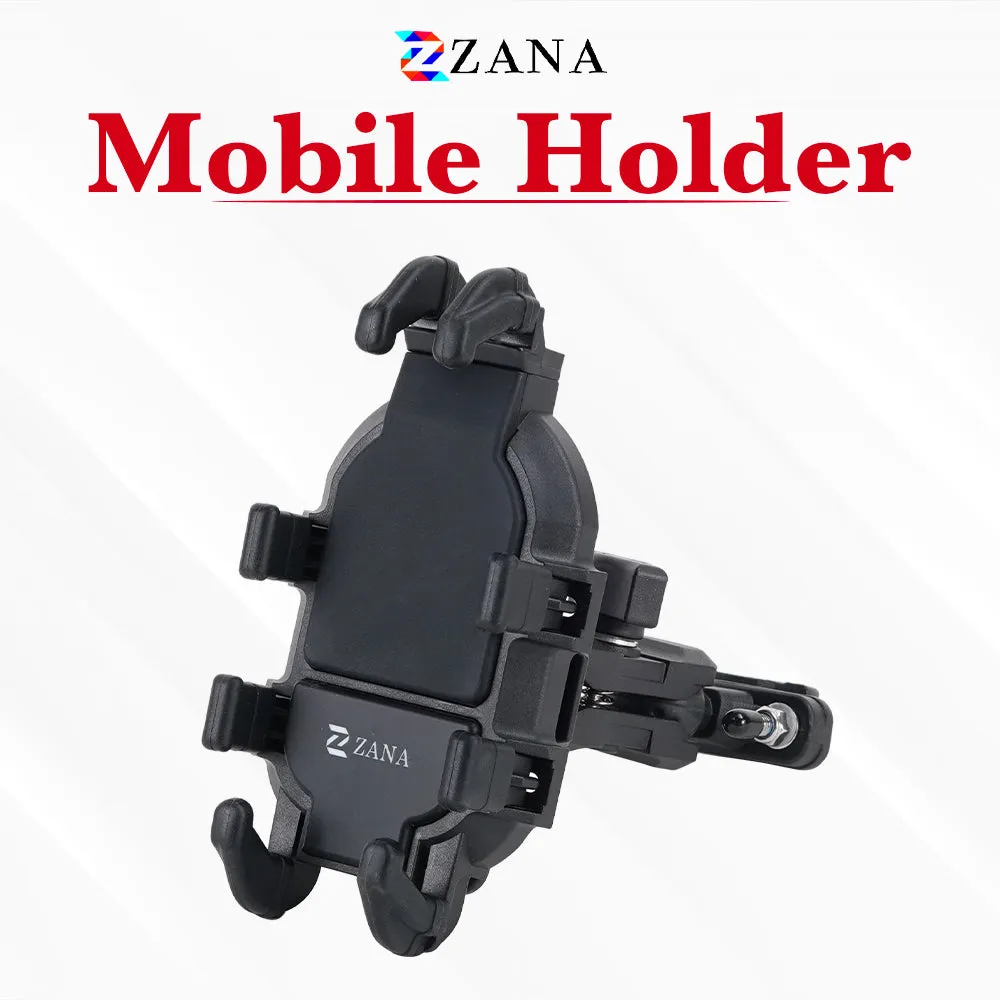

Introducing the ZANA Universal Mobile Holder – your ultimate companion for seamless navigation and secure device handling!

INSTALL THE HANDLEBAR CLAMP :

Position the handlebar clamp on the desired spot on the bike’s handlebar
Use M6*30 button head bolts to secure the clamp in place.

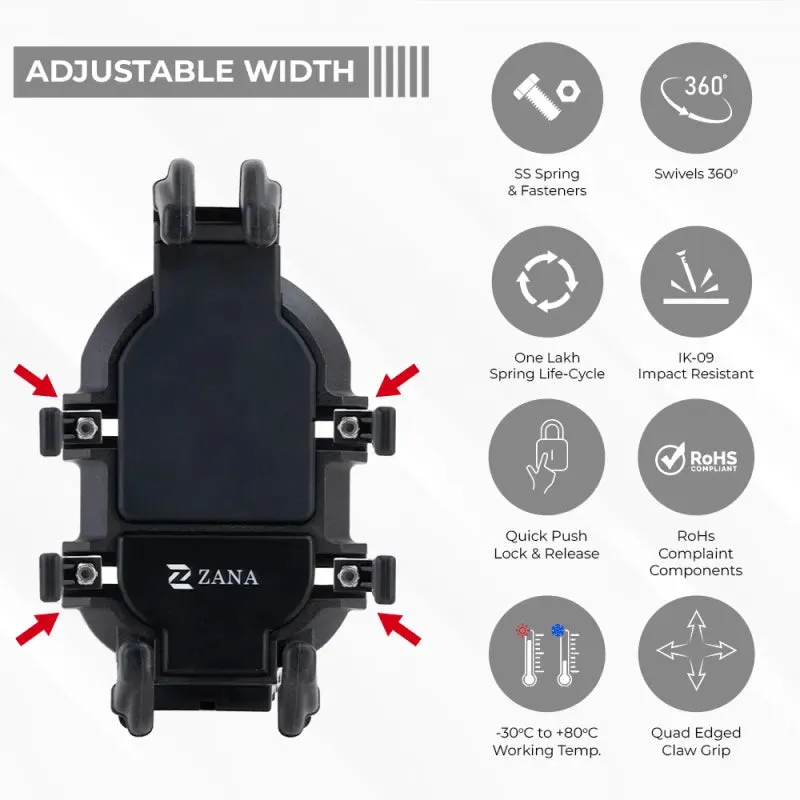

ATTACH ADJUSTABLE SIDE SUPPORTS :

Attach the adjustment side supports to the phone holder body.
Adjust the supports to fit your phone’s dimensions.
Secure the supports using M4*10 fasteners (8 in total)

MOUNT THE BALL SOCKET AND 18W CHARGER :

For the ball socket: use an M5*16 screw and a pair of M5 nylon nuts to attach it to the phone holder body.
For the 18W charger: use the 9.5 pan Philip STS screw to mount it onto the phone holder body

ATTACH THE PHONE HOLDER TO THE HANDLEBAR CLAMP :

Insert the ball socket into the 20mm ball protruding from the handlebar clamp.
Tighten the nuts to ensure a secure fit and prevent any free motion of the phone holder’s body.
